Geoip2Influx - Docker mod for nginx/swag

This mod adds a python script that sends geo location metrics from the nginx access log to InfluxDB

The mod will parse the access log for IPs and and convert them into geo metrics for InfluxDB. It will also send log metrics if enabled.

Add -e DOCKER_MODS=linuxserver/mods:swag-geoip2influx

Enviroment variables:

These are the default values for all envs. Add the ones that differ on your system.

Environment Variable	Example Value	Description
NGINX_LOG_PATH	/config/log/nginx/access.log	Optional, defaults to the example.
INFLUX_HOST	localhost	Host running InfluxDB.
INFLUX_HOST_PORT	8086	Optional, defaults to 8086.
INFLUX_DATABASE	geoip2influx	Optional, defaults to geoip2influx.
INFLUX_USER	root	Optional, defaults to root.
INFLUX_PASS	root	Optional, defaults to root.
GEO_MEASUREMENT	geoip2influx	Optional, InfluxDB measurement name for geohashes. Defaults to the example.
LOG_MEASUREMENT	nginx_access_logs	Optional, InfluxDB measurement name for nginx logs. Defaults to the example.
SEND_NGINX_LOGS	true	Optional, set to false to disable nginx logs. Defaults to true.
GEOIP2INFLUX_LOG_LEVEL	info	Optional. Sets the log level in geoip2influx.log. Use debug for verbose logging Optional, defaults to info.
INFLUX_RETENTION	7d	Optional. Sets the retention for the database. Defaults to example.
INFLUX_SHARD	1d	Optional. Set the shard for the database. Defaults to example.
MAXMINDDB_LICENSE_KEY	xxxxxxx	Add your Maxmind licence key

---

MaxMind Geolite2

Default download location is /config/geoip2db/GeoLite2-City.mmdb

Get your licence key here: https://www.maxmind.com/en/geolite2/signup

InfluxDB

The InfluxDB database will be created automatically with the name you choose.

---

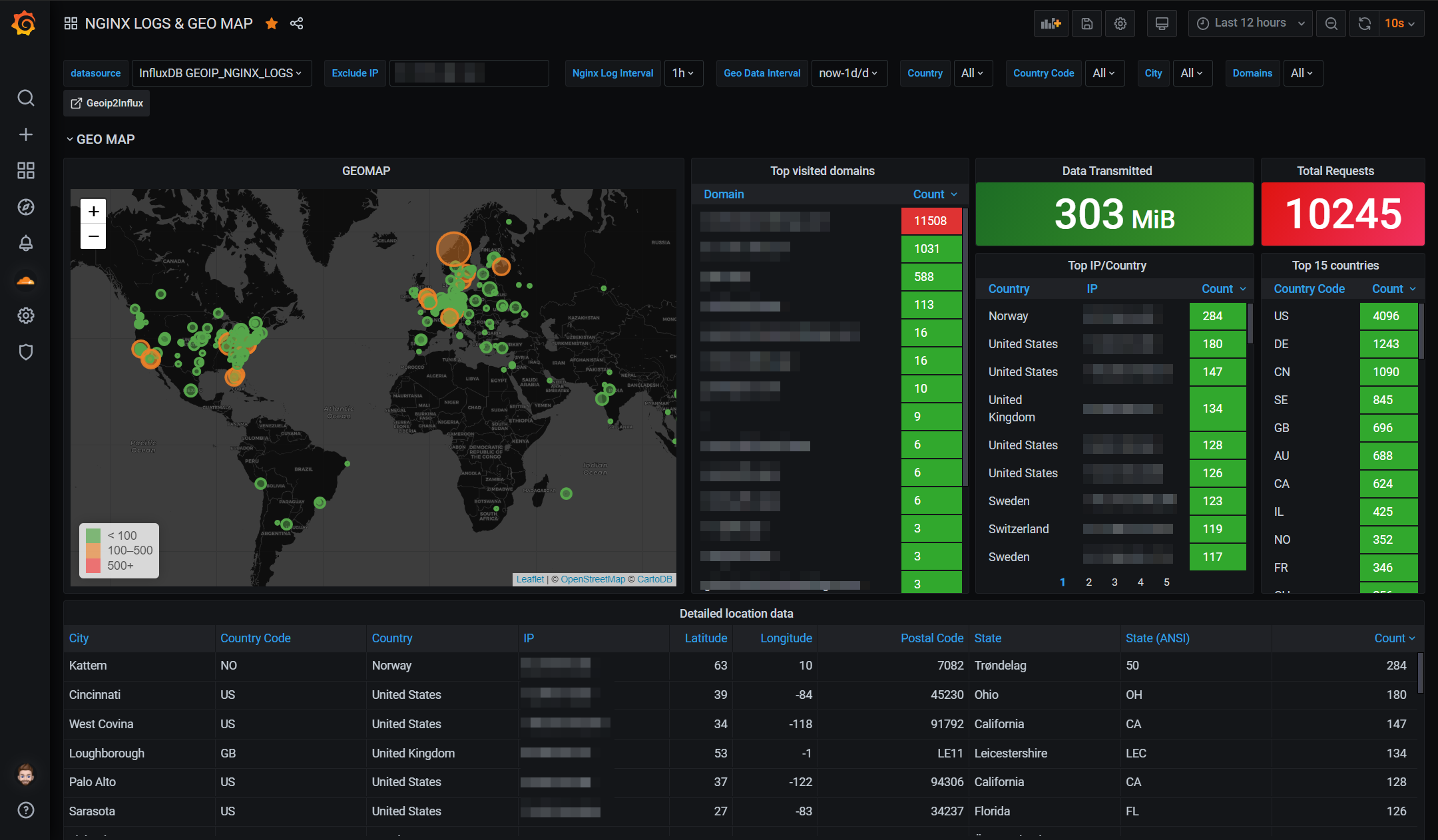

Grafana dashboard:

Grafana Dashboard Link

---

Sending Nginx log metrics

1. Add the following to the http block in your nginx.conffile:

geoip2 /config/geoip2db/GeoLite2-City.mmdb {
auto_reload 5m;
$geoip2_data_country_code country iso_code;
$geoip2_data_city_name city names en;
}

log_format geoip2influx '$remote_addr - $remote_user [$time_local]'
           '"$request" $status $body_bytes_sent'
           '"$http_referer" $host "$http_user_agent"'
           '"$request_time" "$upstream_connect_time"'
           '"$geoip2_data_city_name" "$geoip2_data_country_code"';

2. Set the access log use the geoip2influx log format.

access_log /config/log/nginx/access.log geoip2influx;

Multiple log files

If you separate your nginx log files but want this mod to parse all of them you can do the following:

As nginx can have multiple access log directives in a block, just add another one in the server block.

Example

	access_log /config/log/nginx/technicalramblings/access.log;
	access_log /config/log/nginx/access.log geoip2influx;

This will log the same lines to both files.

Then use the /config/log/nginx/access.log file in the NGINX_LOG_PATH variable.
