Geoip2Influx - Docker mod for nginx/swag

This mod adds a python script that sends geo location metrics from the nginx access log to InfluxDB

The mod will parse the access log for IPs and and convert them into geo metrics for InfluxDB. It will also send log metrics if enabled. This mod depends on the swag-maxmind-mod!

Add -e DOCKER_MODS=linuxserver/mods:swag-geoip2influx|linuxserver/mods:swag-maxmind

Enviroment variables:

These are the default values for all envs. Add the ones that differ on your system.

Environment Variable	Example Value	Description
NGINX_LOG_PATH	/config/log/nginx/access.log	Container path for Nginx logfile , defaults to the example.
GEO_MEASUREMENT	geoip2influx	InfluxDB measurement name for geohashes. Optional, defaults to the example.
LOG_MEASUREMENT	nginx_access_logs	InfluxDB measurement name for nginx logs. Optional, defaults to the example.
SEND_NGINX_LOGS	true	Set to false to disable nginx logs. Optional, defaults to true.
GEOIP2INFLUX_LOG_LEVEL	info	Sets the log level in geoip2influx.log. Use debug for verbose logging Optional, defaults to info.
GEOIP2INFLUX_LOG_PATH	/config/log/geoip2influx/geoip2influx.log	Optional. Defaults to example.
GEOIP_DB_PATH	/config/geoip2db/GeoLite2-City.mmdb	Optional. Defaults to example.
MAXMINDDB_LICENSE_KEY	xxxxxxx	Add your Maxmind licence key
MAXMINDDB_USER_ID	xxxxxxx	Add your Maxmind account id

InfluxDB v1.8.x values

Environment Variable	Example Value	Description
INFLUX_HOST	localhost	Host running InfluxDB.
INFLUX_HOST_PORT	8086	Optional, defaults to 8086.
INFLUX_DATABASE	geoip2influx	Optional, defaults to geoip2influx.
INFLUX_USER	root	Optional, defaults to root.
INFLUX_PASS	root	Optional, defaults to root.
INFLUX_RETENTION	7d	Sets the retention for the database. Optional, defaults to example.
INFLUX_SHARD	1d	Set the shard for the database. Optional, defaults to example.

InfluxDB v2.x values

Environment Variable	Example Value	Description
USE_INFLUXDB_V2	true	Required if using InfluxDB2. Defaults to false
INFLUXDB_V2_TOKEN	secret-token	Required
INFLUXDB_V2_URL	http://localhost:8086	Optional, defaults to http://localhost:8086
INFLUXDB_V2_ORG	geoip2influx	Optional, defaults to geoip2influx. Will be created if not exists.
INFLUXDB_V2_BUCKET	geoip2influx	Optional, defaults to geoip2influx. Will be created if not exists.
INFLUXDB_V2_RETENTION	604800	Optional, defaults to 604800. 7 days in seconds
INFLUXDB_V2_DEBUG	false	Optional, defaults to false. Enables the debug mode for the influxdb-client package.
INFLUXDB_V2_BATCHING	true	Optional, defaults to false. Enables batch writing of data.
INFLUXDB_V2_BATCH_SIZE	100	Optional, defaults to 10.
INFLUXDB_V2_FLUSH_INTERVAL	30000	Optional, defaults to 15000. How often in milliseconds to write a batch

INFLUXDB_V2_TOKEN

If the organization or bucket does not exist, it will try and create them with the token.

Note

The minimim level of rights needed is write access to the bucket.

MaxMind Geolite2

Get your licence key here: https://www.maxmind.com/en/geolite2/signup

InfluxDB

InfluxDB v2.x and v1.8x is supported.

Note: The Grafana dashboard currently only supports InfluxDB v1.8.x

The InfluxDB database/bucket and retention rules will be created automatically with the name you choose.

-e INFLUX_DATABASE=geoip2influx or -e INFLUXDB_V2_BUCKET=geoip2influx

---

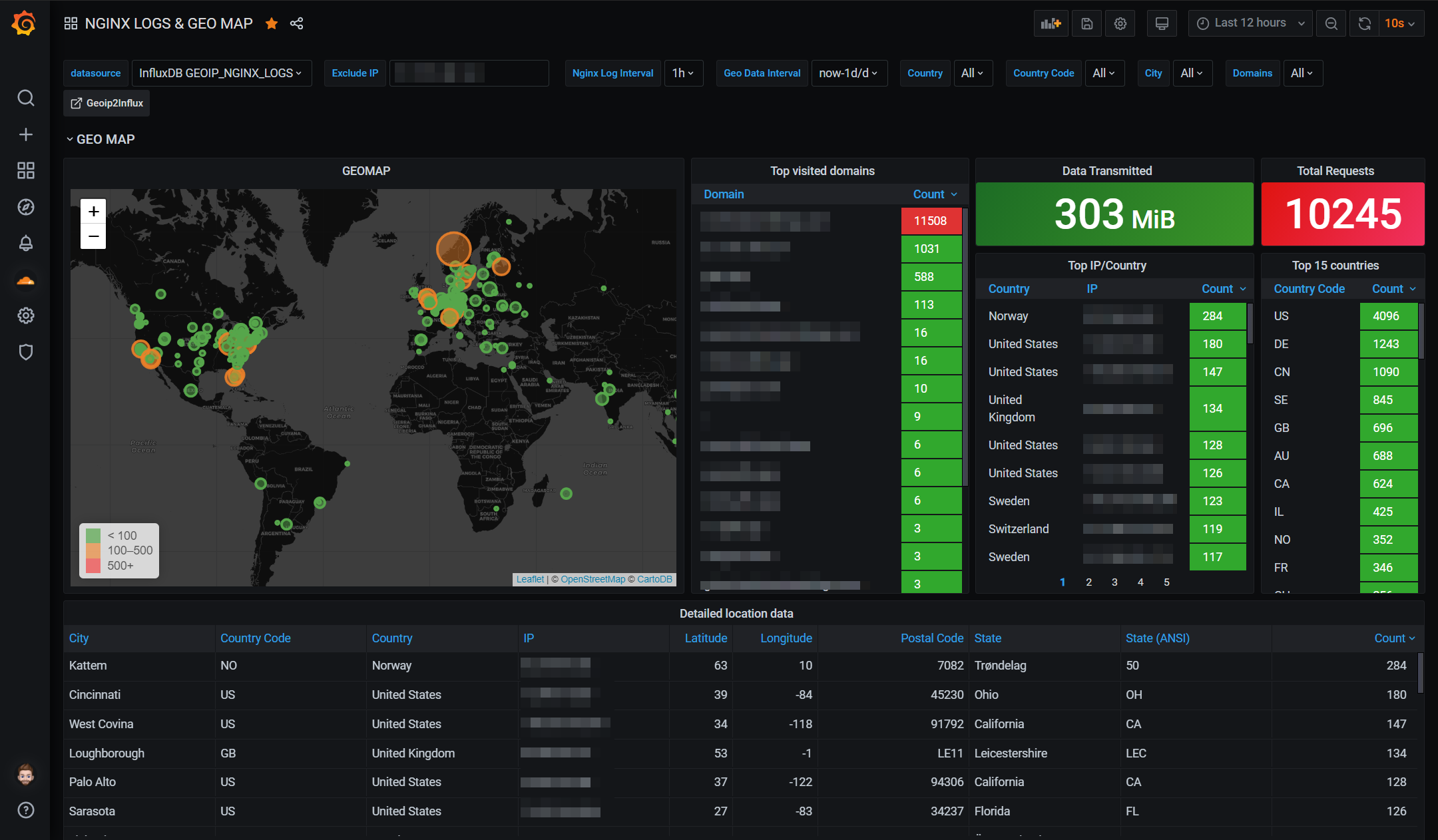

Grafana dashboard:

Use https://github.com/GilbN/geoip2influx/blob/master/nginx_logs_geo_map.json

Note

Dashboard currently only supports InfluxDB 1.8.x.

---

Sending Nginx log metrics

1. Setup the swag-maxmind-mod

2. Add the following to the http block in your nginx.conffile:

log_format geoip2influx '$remote_addr - $remote_user [$time_local]'
           '"$request" $status $body_bytes_sent'
           '"$http_referer" $host "$http_user_agent"'
           '"$request_time" "$upstream_connect_time"'
           '"$geoip2_data_city_name" "$geoip2_data_country_iso_code"';

3. Set the access log use the geoip2influx log format.

Note: The log_format block must be above the access_log context.

access_log /config/log/nginx/access.log geoip2influx;

Multiple log files

If you separate your nginx log files but want this mod to parse all of them you can do the following:

As nginx can have multiple access log directives in a block, just add another one in the server block.

Example

	access_log /config/log/nginx/technicalramblings/access.log;
	access_log /config/log/nginx/access.log geoip2influx;

This will log the same lines to both files.

Then use the /config/log/nginx/access.log file in the NGINX_LOG_PATH variable.
